Great Thermostat – Great Features – Great Price

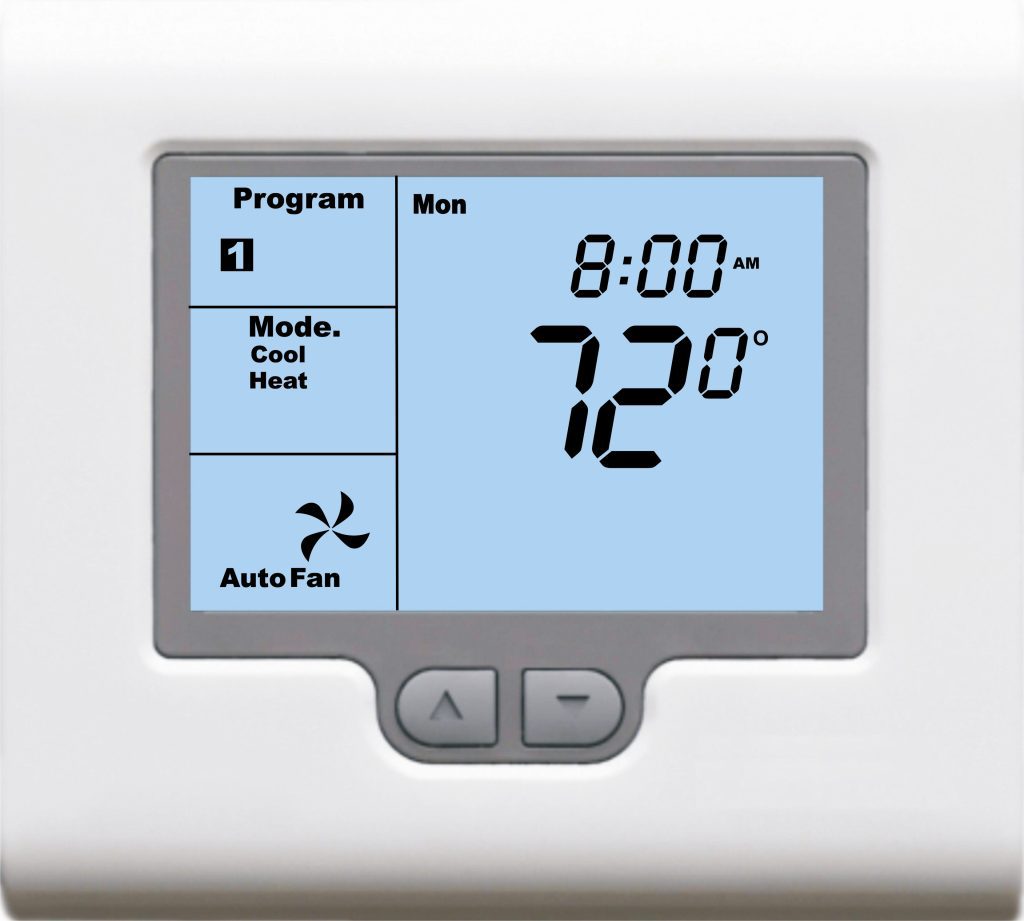

The T-32-P™ is compatible with most residential and commercial HVAC systems and is ideally suited for use with zoning systems.
Features:
Manual or auto changeover
Programmable or non-programmable
Equipment compatibility o 1 Heat / 1 Cool
o 2 Heat / 2 Cool
o 2 Heat / 1 Cool Heat Pump
o 3 Heat / 2 Cool Heat Pump
o 2 Heat / 1 Cool Dual Fuel
o 3 Heat / 2 Cool Dual Fuel
Adjustable setpoint limits
Keyboard locks
Remote occupancy override
Adaptive recovery (optimized start)
Smart fan logic for commercial control
PIN Protected installer setup menus
Outdoor air temperature display
24 volts with non-volatile memory
Integrated Modbus Communications
5 year warranty
Can be Heat Only
Can be Cool Only
3 Speed Fan (Manual or Auto)
Indoor Remote Sensor
Temperature Averaging 1-2-3 or 4 Sensors
After Hours Override 0-12 Hr
Single Set Point Stat (2 Programs)
Freeze Protection Below 40 degrees Fahrenheit
Filter Monitor
Short Cycle Protection (4 min. selectable on/off)
Sensor Calibration +/- 5 degrees Fahrenheit
Adjustable Cycle Rate / Response Time (The lower the number the shorter the cycle)
Adjustable Hi Balance Point Point (Gas heat locked out)
Adjustable Low Balance Point Point
Adjustable Stage Diff. 1.4/1.9/2.4 degrees Fahrenheit
Adjustable Purge Time
Specifications:
Input Voltage: 24VAC 50/60 Hz +/- 15%
Relay Rating: 24VAC @ 1 Amp maximum per relay
Operating Temperature: 32 to 122 degrees F
Operating RH: 0-95% (non-condensing)
Storage Temperature: 32 to 105 degrees F
Display Size: 2.75″ W X 1.875″ H
Accuracy: +/- 0.3 degrees @ 77 degrees F
Temperature Sensor(s): 10K NTC type 3
Stage Delays: Minimum change over time method
Timed Upstage: 5 – 90 minutes
Short Cycle Protection: Off to 4 minutes
Cycle Rate: Unlimited, 30, 10, or 6 (installer set)
Display Resolution: 0.1 degree F
Control Range: 41 to 122 degrees F or Heat Off / Cool Off
Outdoor Temperature Display Range: 17 – 140 degrees F
Back Light: Blue EL (Electro Luminescent)
Back Light Life: 3,000 hours to half brightness
Optimized Start/Stop: Time vs. Temperature Differential – updating(br> Communications Protocol: Modbus
Fan Speeds: Difference between setpoint and room temperature
Approvals: FCC Part 15 (pending) C-tick
Warranty: 5 years
