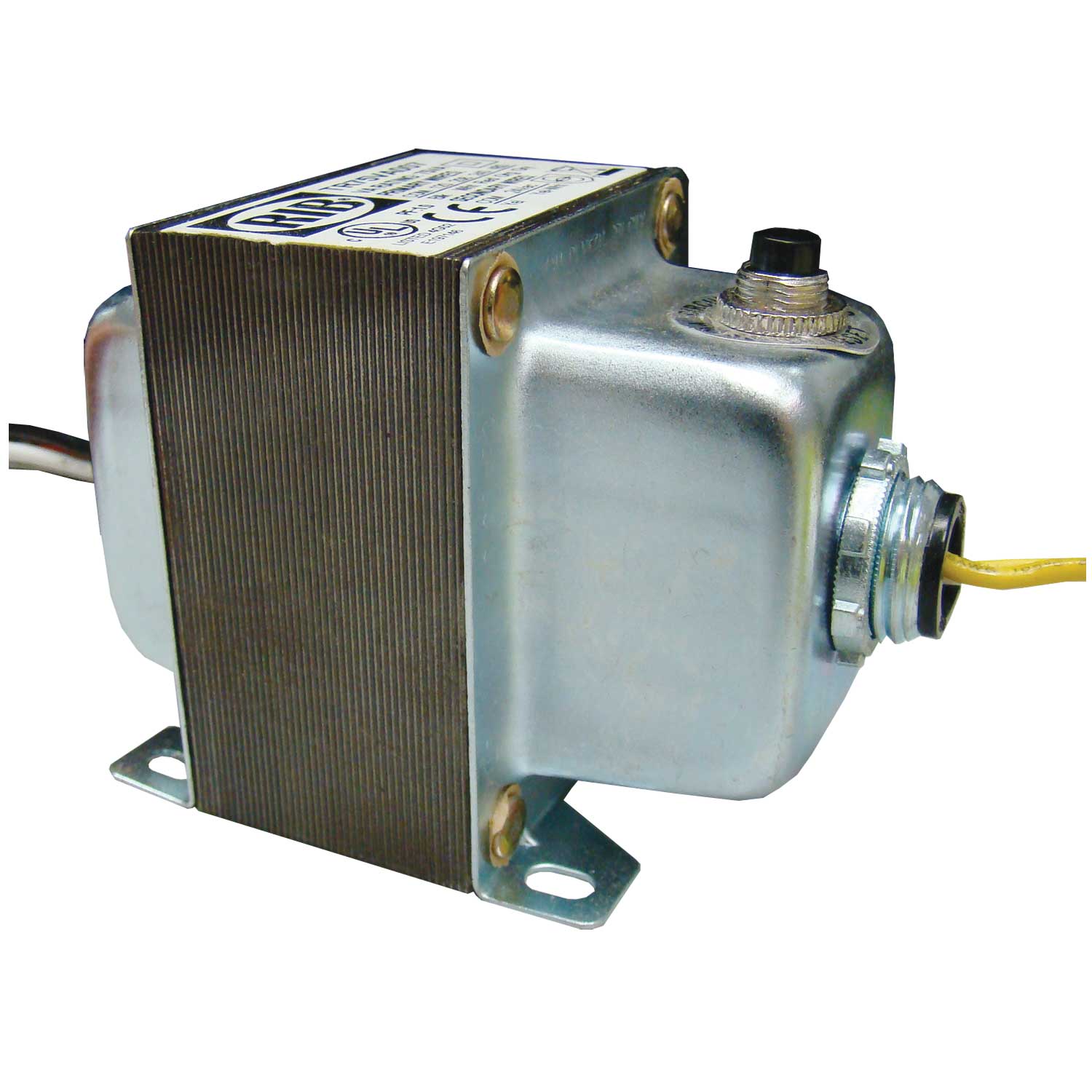

TR-75 – 24VAC, 75VA TRANSFORMER
Transformer is 75 VA, 480/240/208/120 to 24 Vac, Circuit Breaker, Foot and Dual Threaded Hub Mount
Specifications:
VA Rating: 75
Frequency: 50/60 Hz
Mounting: Foot and dual threaded hub
Over Current Protection: Circuit breaker
Dimensions: 3.883˝ x 2.504˝ x 3.034˝ (w/ .500˝ NPT Hubs)
Wire Length: 8˝ Typical w/ .5˝ Strip
Operating Temperature: -30 to 140° F
MTBF:100,000 Hours @ 77° F
Construction: Split-Bobbin
Weight: 3.97 lbs
Approvals: Class 2 UL5085-3 Listed, C-UL, CE, RoHS
