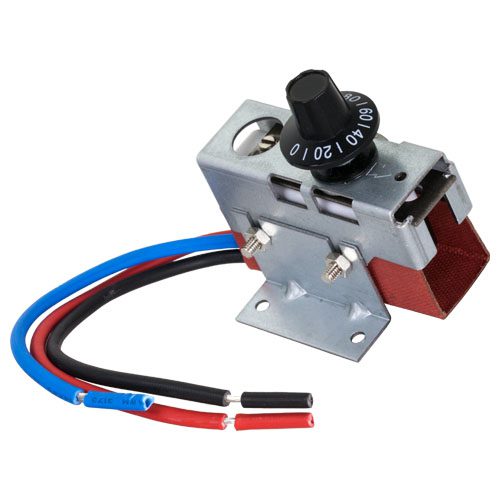

iO-DFK-ODT Outdoor Thermostat for the iO-DFK Dual Fuel Kit_x000D_
_x000D_
OPERATION SPECIFICATIONS_x000D_
_x000D_
_x000D_
_x000D_
Sensor: Bi-Metal_x000D_
_x000D_
_x000D_
_x000D_
Setpoint Range: 0-110° F_x000D_
_x000D_
_x000D_
_x000D_
Rated Differential: 4-6° F_x000D_
_x000D_
_x000D_
_x000D_
Voltage: 120-277VAC_x000D_
_x000D_
_x000D_
_x000D_
Amp Rating: 22 Amps, Resistive Max._x000D_
_x000D_
_x000D_
_x000D_
HP Ratings: 3/4 HP @ 125 VAC_x000D_
_x000D_
_x000D_
_x000D_
1.5 HP @ 250-277 VAC_x000D_
_x000D_
_x000D_
_x000D_
Connections: 6” Wire Leads_x000D_
_x000D_
Red – Common_x000D_
_x000D_
Black – Make on fall below setpoint_x000D_
_x000D_
Blue – Make on rise above setpoint _x000D_
_x000D_
_x000D_
_x000D_
Size: 2.63” H x 1.5” W x 2.5” D_x000D_
_x000D_
Depth includes 0.88” for stem and knob_x000D_
_x000D_
Width includes 0.63” for mounting bracket
