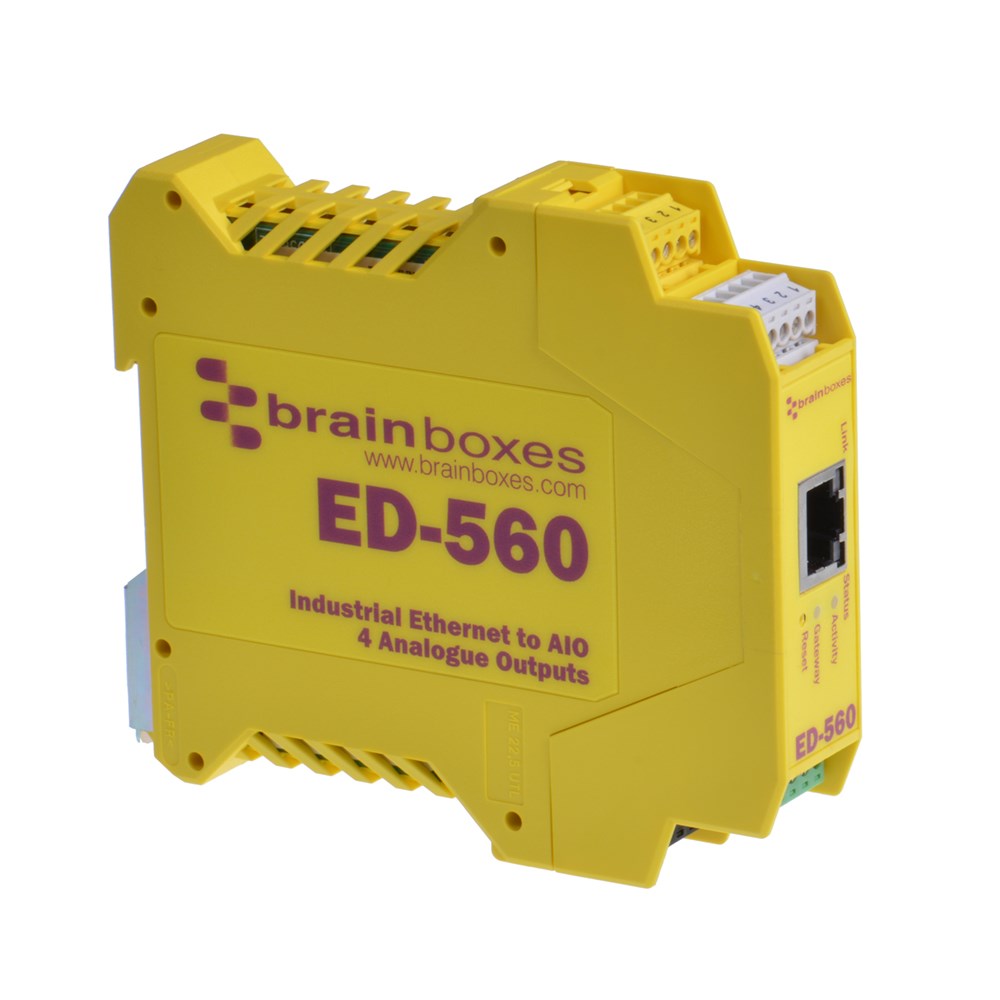

The ED-560 has 4 Analogue Outputs + RS485 Expansion. It is suitable for high-precision control of voltages and currents. As well as the popular 0-10V and 4-20mA outputs, the ED-560 allows full scale signals as small as ±75mV to be resolved to 12 bit accuracy across 4 analogue outputs. Each channel is dividually configurable for voltage or current output with its own programmable ga. The device stalls as a COM Port on a Wdows PC to give complete backwards compatibility essential for legacy applications. From other platforms and operatg systems the device can be controlled over TCP/IP. Additionally Braboxes supply a suite of APIs and sample code to communicate with the ED device usg Microsoft .NET framework, C++, Java, Javascript, PHP and more. The device can be configured and secured from a web browser. The ED product range is designed for harsh environments. Typical applications are control and switchg of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bus, Air Conditiong, Heaters and Solenoids..
