3-Way, Control Valves & Actuators, Globe Valve Assembly
294-06168
Valve assy 3W Mix 5″ 250Cv Eq Pct/Lin SS Trim Flanged Prop El-Hydraul Act SR
$12,346.19

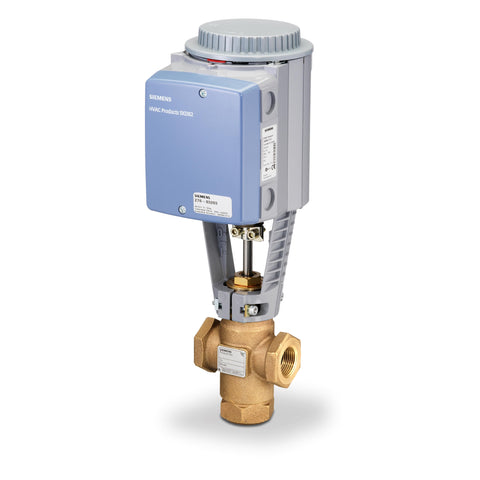

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 1-1/2-inch stroke. The 3-way, mixing, 5-inch, 250 Cv valve assembly with 1-1/2-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.
