2-Way, Control Valves & Actuators, Globe Valve Assembly
294-05952
Valve assy 2W NC 4″, 160Cv, Eq Pct Brass Trim Flanged Prop El-Hydraul Act SR
$6,961.31

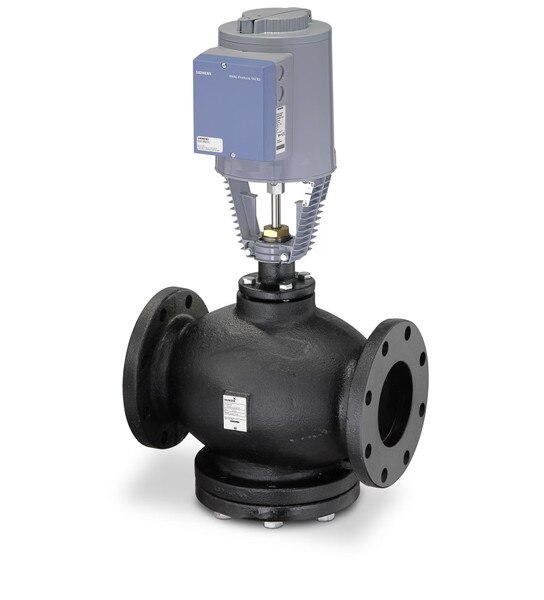

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 1-1/2-inch stroke. The 2-way, normally closed, 4-inch, 160 Cv valve assembly with 1-1/2-inch stroke is ANSI Class 250 and has an equal percentage characteristic, brass trim, and flanged end connections.
