3-Way, Control Valves & Actuators, Globe Valve Assembly
291-06175
Valve assy 3W Mix 2-1/2″ 63Cv Eq Pct/Lin SS Trim Flanged Prop El-Hydraul Act SR
$8,007.00

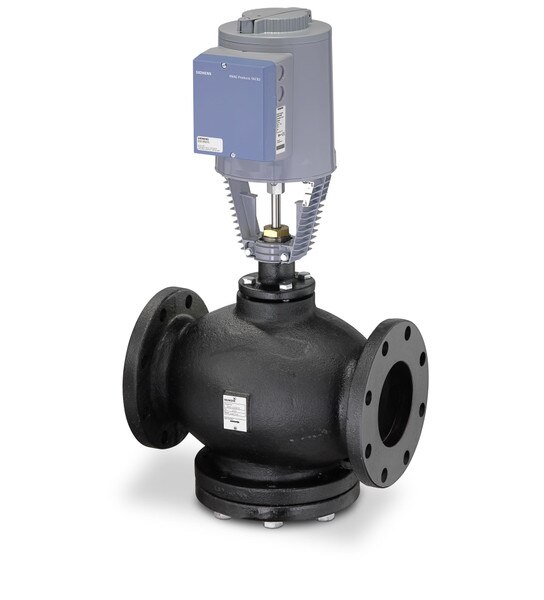

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 3/4-inch stroke. The 3-way, mixing, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 250 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.
