3-Way, Control Valves & Actuators, Globe Valve Assembly
291-06160
Valve asy 3W Mix 2-1/2″ 63Cv Eq Pct/Lin Brnze Trim Flanged Prop El-Hydrl Act SR
$5,604.56

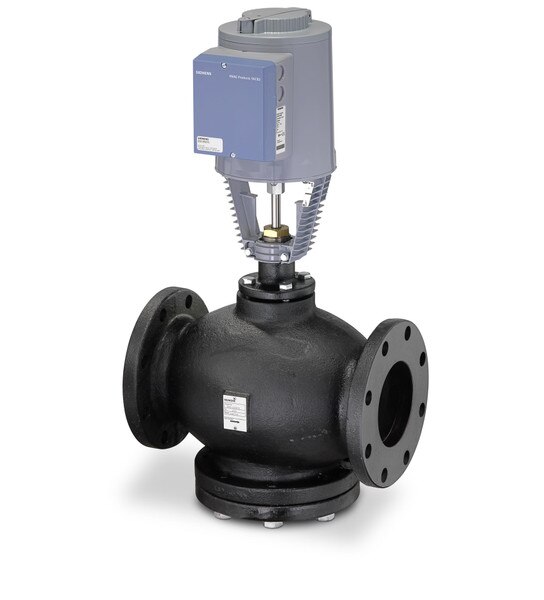

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 3/4-inch stroke. The 3-way, mixing, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, brass trim, and flanged end connections.
