2-Way, Control Valves & Actuators, Globe Valve Assembly
291-05950

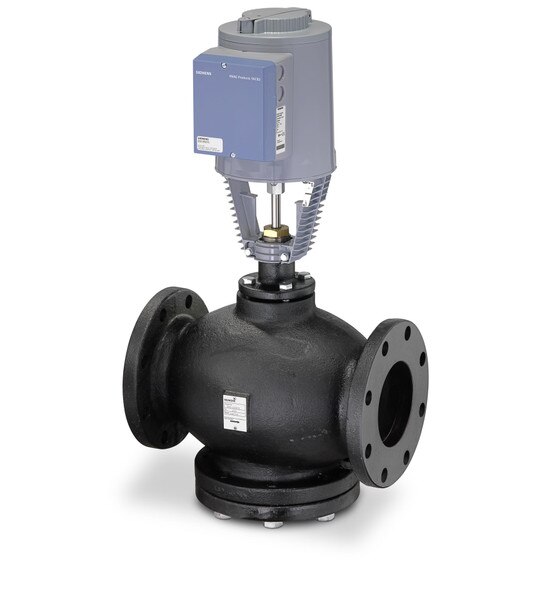

Valve assy 2W NC 2-1/2″, 63Cv, Eq Pct Brass Trim Flanged Prop El-Hydrl Act SR
$5,445.23
Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 3/4-inch stroke. The 2-way, normally closed, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 250 and has an equal percentage characteristic, brass trim, and flanged end connections.
