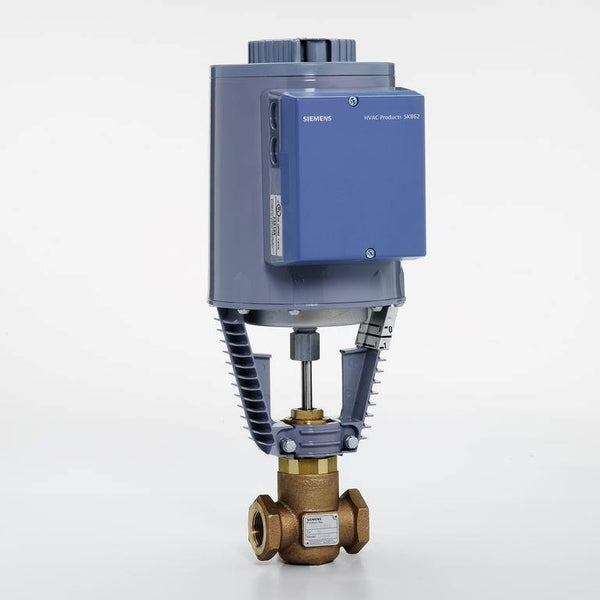

3-Way, Control Valves & Actuators, Globe Valve Assembly
291-03149
Valve assy 3W Mix 1″ 10Cv Eq Pct/Lin SS Trim Prop Internal Thread x Internal Thread, El-Hydraul Act SR
$4,690.77
Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 3/4-inch stroke. The 3-way, mixing, 1-inch, 10 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, stainless steel trim, and Internal Thread x Internal Thread end connections.
