2-Way, Control Valves & Actuators, Globe Valve Assembly
291-03132
Valve assy 2W NC 1-1/4″, 16Cv, Eq Pct SS Trim Prop Internal Thread x Internal Thread, El-Hydraul Act SR
$4,701.39

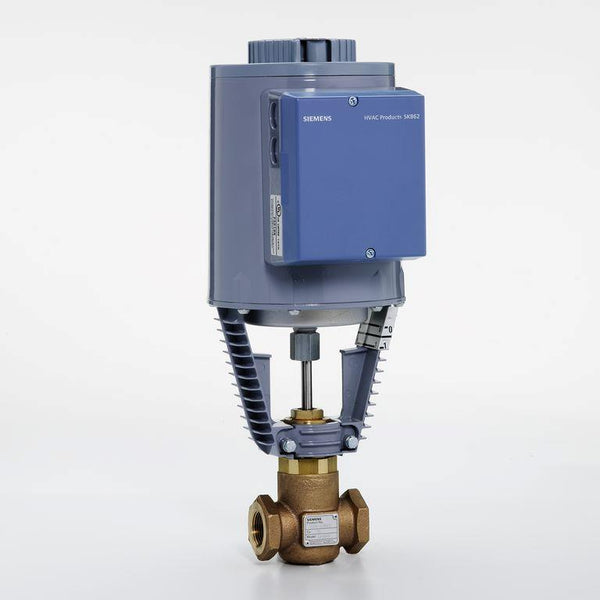

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 3/4-inch stroke. The 2-way, normally closed, 1-1/4-inch, 16 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and Internal Thread x Internal Thread end connections.
