2-Way, Control Valves & Actuators, Globe Valve Assembly
291-03079
Valve assy 2W NC 1-1/2″ 25Cv Lin SS Trim Hi Temp Pkg Prop Internal Thread x Internal Thread El-Hydraul Act SR
$5,214.12

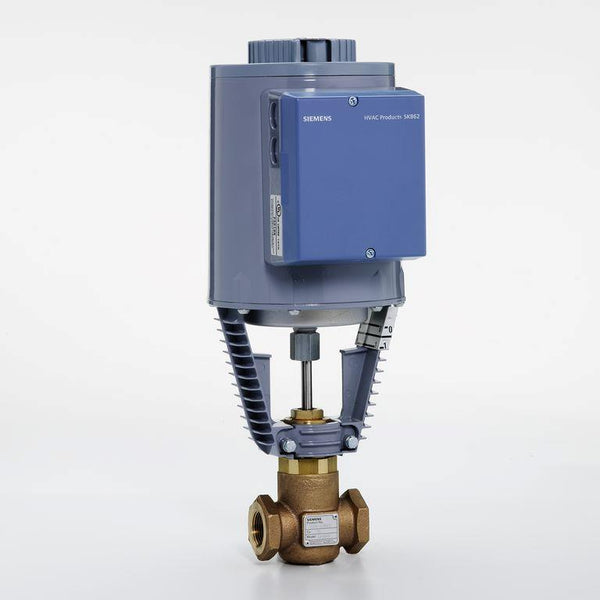

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 3/4-inch stroke. The 2-way, normally closed, 1-1/2-inch, 25 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and Internal Thread x Internal Thread end connections.
