2-Way, Control Valves & Actuators, Globe Valve Assembly
291-03060

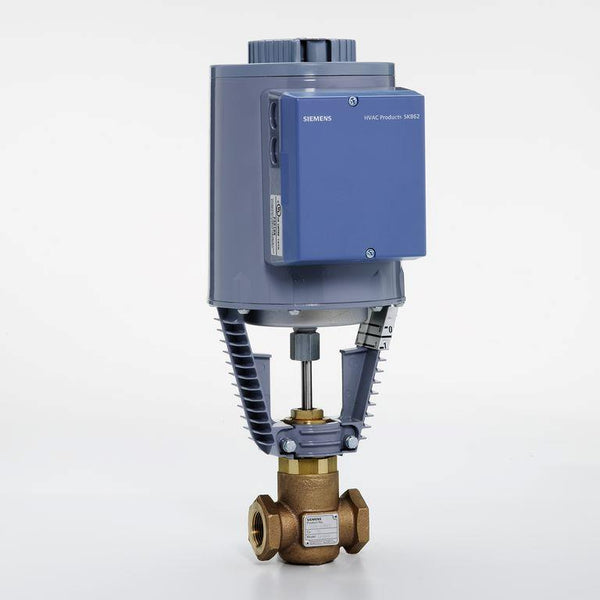

Valve assy 2W NO 1-1/4″ 16Cv Lin SS Trim Hi Temp Pkg Prop Internal Thread x Internal Thread El-Hydrl Act SR
$4,806.57
Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 3/4-inch stroke. The 2-way, normally open, 1-1/4-inch, 16 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and Internal Thread x Internal Thread end connections.
