2-Way, Control Valves & Actuators, Globe Valve Assembly
267-05981
Valve assy 2W NO, 3″ 100Cv Eq Pct Brass Trim Flanged Prop El-Hydraul Act NSR
$3,817.22

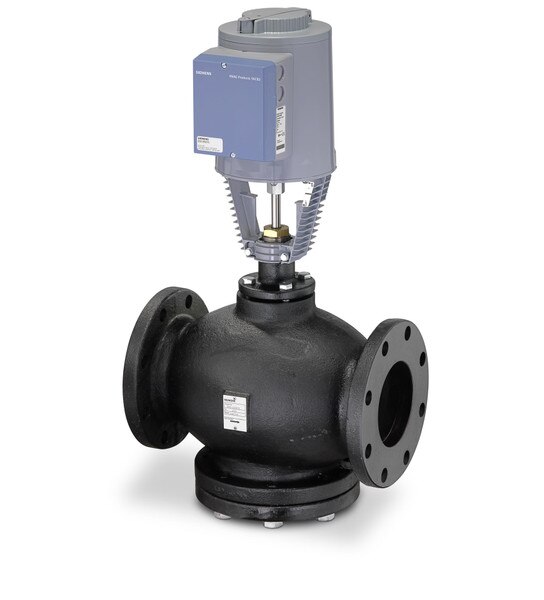

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally open, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage characteristic, brass trim, and flanged end connections.
