2-Way, Control Valves & Actuators, Globe Valve Assembly
267-03162
Valve assy 2W NO, 1/2″ 1Cv Eq Pct Brass Trim Internal Thread x Internal Thread, Prop El-Hydraul Act NSR
$2,227.29

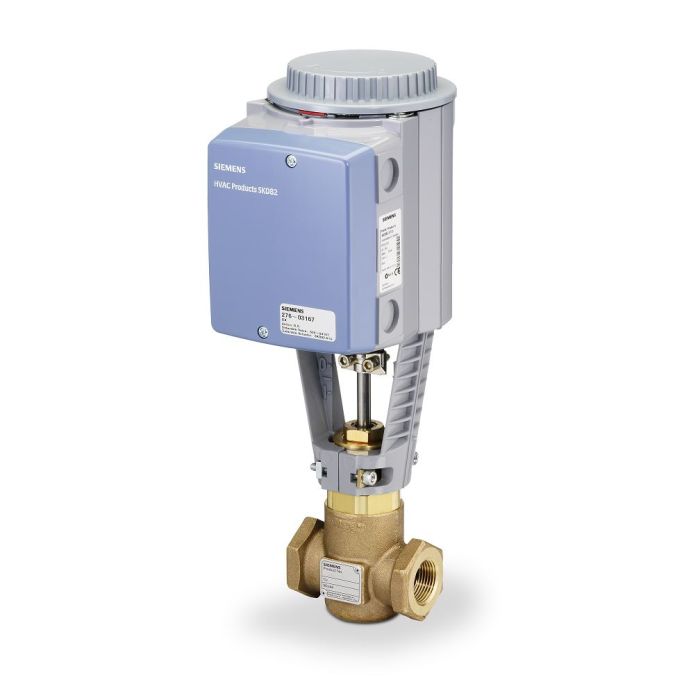

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally open, 1/2-inch, 1 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, brass trim, and Internal Thread x Internal Thread end connections.
