6-Way, Ball Valve Assembly, Control Valves & Actuators
171C-10602-4.0-4.0
6W ball valve 1″, A=4.0Cv, B=4.0Cv, 58psi close-off, NPT Union Internal Thread, 0-10V NSR
$1,342.57

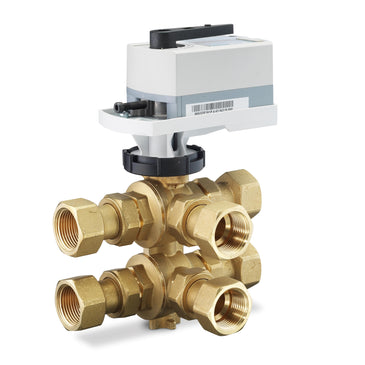

This 1 inch 599 Series 6-way ball valve with a 0-10 Vdc control fail-in-place actuator assembly is used to control hot or chilled water and up to 50% Glycol solution in chilled/heated beams and other four pipe systems using a single valve and actuator. 58 psi close-off with 0% leakage. Source A = 4.0 Cv and Source B = 4.0 Cv, linear flow characteristic and chrome-plated brass ball and stainless steel stem and Cv washers. There is a handle for manual operation of the valve in the event of power failure.
