6-Way, Ball Valve Assembly, Control Valves & Actuators
171C-10601-1.9-1.9
6W ball valve 3/4″, A=1.9Cv, B=1.9Cv, 58psi close-off, NPT Union Internal Thread, 0-10V NSR
$1,136.02

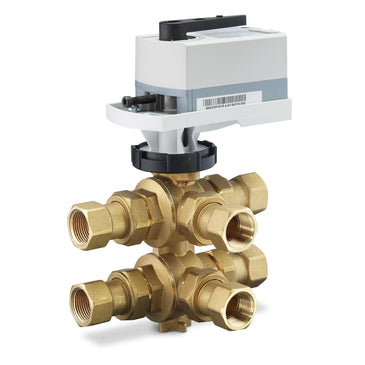

This 3/4 inch 599 Series 6-way ball valve with a 0-10 Vdc control fail-in-place actuator assembly is used to control hot or chilled water and up to 50% Glycol solution in chilled/heated beams and other four pipe systems using a single valve and actuator. 58 psi close-off with 0% leakage. Source A = 1.9 Cv and Source B = 1.9 Cv, linear flow characteristic and chrome-plated brass ball and stainless steel stem and Cv washers. There is a handle for manual operation of the valve in the event of power failure.
